Some sessions move one job forward. This one moved three.

The engine gives up its secrets

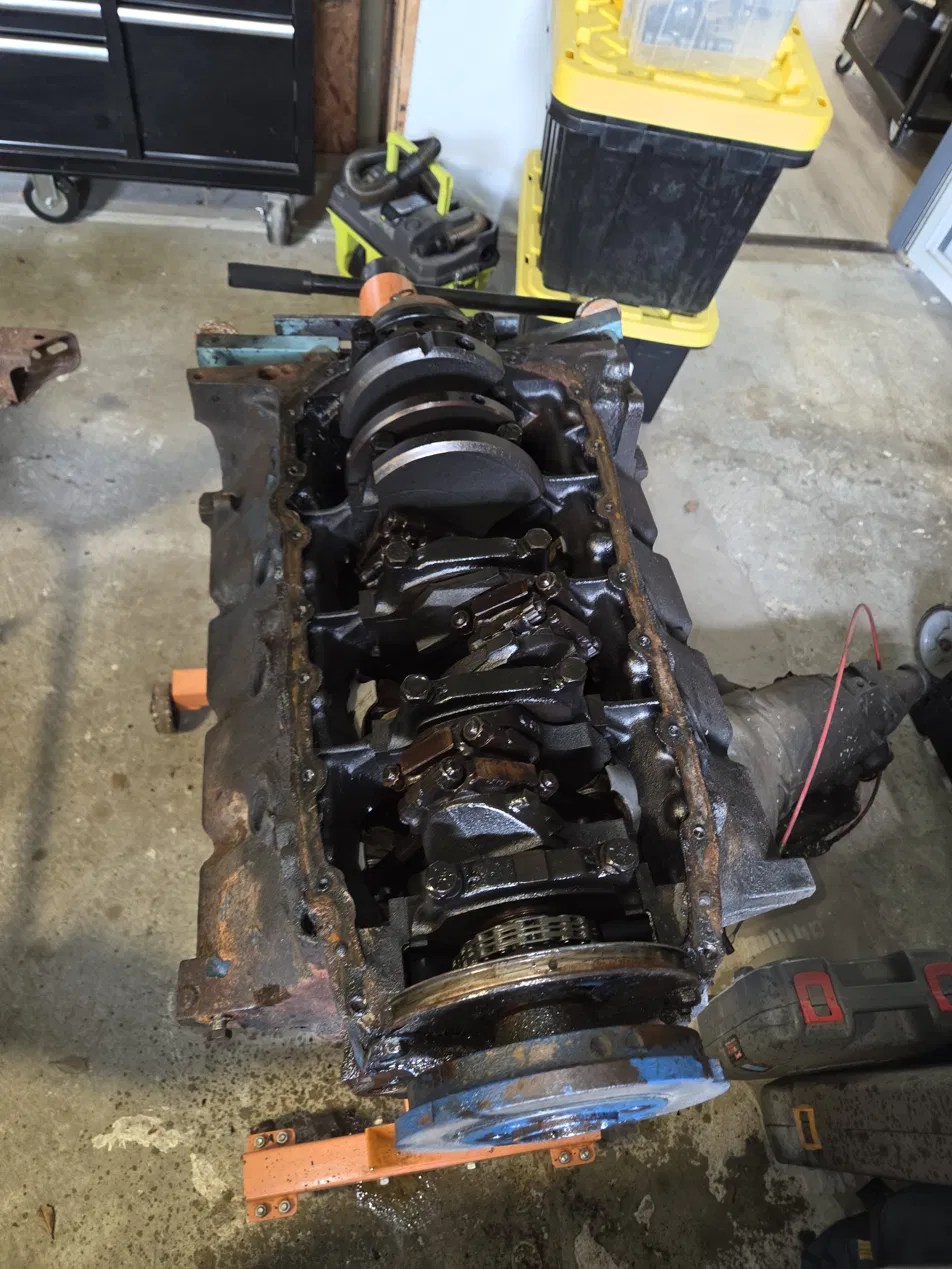

The 350 is on the stand, flipped over, pan off, heads off, and the bottom end is staring up at the ceiling for the first time in decades. Crank, rods, timing chain, all of it right there in the open.

The teardown also handed me the first real parts casualty of the build. The pushrods got mixed up coming out, and while sorting that mess I found a couple of the stamped rocker arms cracked. On an Oldsmobile that is not a shocking discovery. The factory stamped rockers are a known weak spot, and this engine spent part of its life with somebody’s hot rod cam working them hard. Two cracked means all sixteen are done. No mixing new steel with fifty seven year old steel and wondering which one lets go at five grand.

Here is the thing though. It cost me almost nothing. The rebuild was already going to eat every one of those parts. A fresh flat tappet cam demands new lifters no matter what, the pushrods were getting replaced with the rockers, and I had already decided on all new stainless valves. The mixup just made official what the plan had already decided. The whole valvetrain goes in the bin and the heads keep nothing but their castings.

The plan from here is discipline, not guesswork. Everything comes apart and gets saved exactly as it is. Rods and caps get punch marked to their cylinders, bearings get taped to cardboard in order and photographed, pistons get checked for oversize stamps on the way out. Then the block goes to the machine shop and the measurements make the decisions. No parts orders until the bores tell us what they are.

The machinist checks out

Speaking of the machine shop, I got the quote back, and I got something better than numbers. Without me asking, he flagged that Oldsmobile valve seats sit close to the water jackets underneath them, and said he would not install hardened seats unless the heads truly need them because of the risk of cutting through into water. That is a man who has been inside these heads before. Machinists who volunteer reasons not to sell you something are getting rare, and this one is a keeper.

Good news is the hardened seat question is already dead. Modern stainless valves with a proper three angle valve job on the original seats is the accepted recipe for unleaded gas on these heads. No inserts, no water jacket roulette. Block gets baked and blasted since it is headed for a rebore anyway, and I will strip the heads myself on the bench, which turns head cleaning into pocket change instead of a full overhaul bill.

Springs out the same day the tool showed up

UPS delivered the new spring compressor this morning, and by the afternoon the rear coil springs were out of the frame. Same day service from brown truck to shop floor.

Next up is the four link, and that is the fight I have been preparing for. The control arm bolts on these cars rust weld themselves to the steel sleeves inside the bushings. The nut spins off easy and gives you hope, then the bolt just rotates forever because it and the sleeve have become one part. I have had every bolt soaking in penetrating oil for days now, and the escalation plan is ready: shock and rock with the breaker bar, impact gun, heat if it comes to that, and the sawzall standing by for any bolt that refuses. The arms and bolts are consumables. The frame brackets are the only parts that matter, and the blade stays away from those.

Honest expectation, learned from everyone who has done this before me: at least a couple of these bolts are getting cut no matter how long they soak. That is not failure. That is just what fifty seven years does to steel.

Where she stands

Engine bottom end open and coming apart with everything labeled. Heads coming off the bench next for their trip to the machinist. Rear springs out, four link soaking, and the frame is a few stubborn bolts away from being completely bare for the first time since 1969.

When that last arm drops, this stops being a car that came apart and becomes a frame ready to be built. That photo is coming soon.

Questions and war stories welcome in the comments, especially if you have your own rusted four link bolt story. Misery loves company down here.
