Promise Kept

Last post ended with a promise. One bolt stood between this body and its frame, and I told you that next post, she flies.

She flew.

What got done

The passenger rear body bolt with the spinning cage nut got cut, exactly as planned. No drama, no finesse, one blade through one seized bolt that had been holding out on us for a week. After that, the shell had nothing left to say about it.

Both engine hoists went on the body, one at each end, and up she came. Level, slow, and controlled. For the first time since March of 1969, when Fisher Body in Oshawa dropped this shell onto this frame, the two came apart.

I will be honest with you about how it felt. The lift itself was easy. The prep made it easy. Every line, every cable, every ground strap checked three times, a lifting plan instead of a lifting guess. But easy and calm are two different things. There is nothing casual about fifty seven year old sheet metal hanging in the air over your head while you work the hoists alone. My heart rate knew what was happening even when my hands were steady. That is the correct way to feel. The day this stops making you nervous is the day you should stop doing it.

What got found

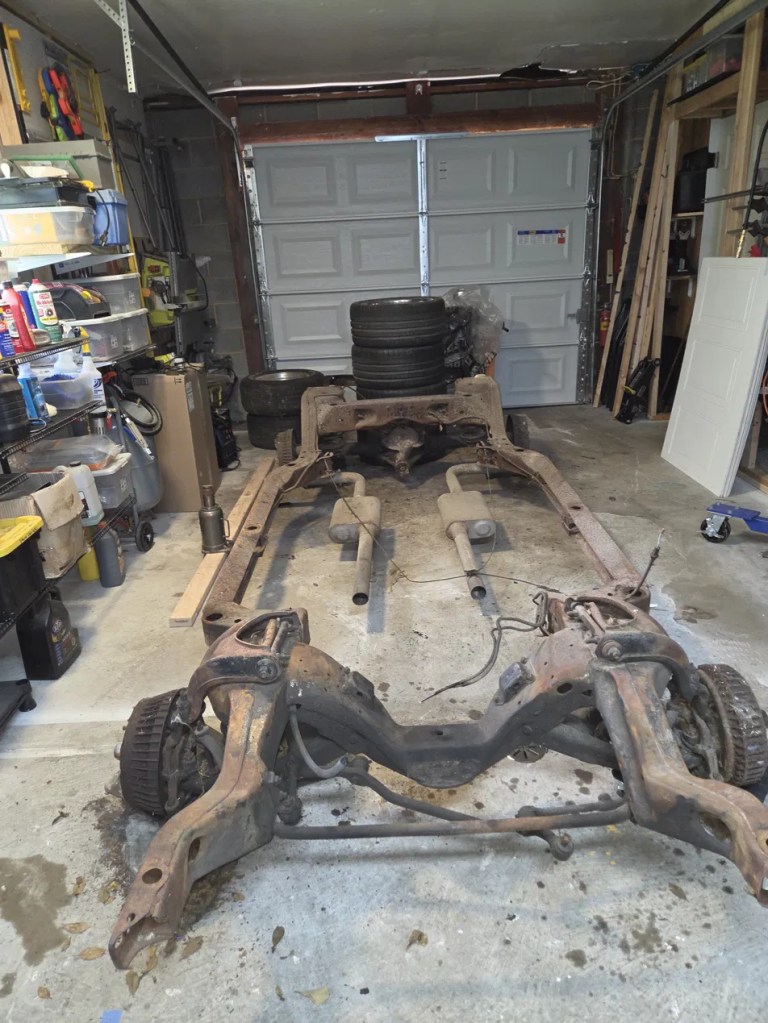

Look at that frame photo for a minute. That is a complete 1969 A body rolling chassis, stripped to its bones, seeing full sun for the first time in decades. Front suspension, steering, the 12 bolt out back, and even the old exhaust still hanging in the middle like it forgot to leave.

And daylight settled a question the teardown had been teasing. Working under the car with a flashlight, the rails looked boxed, and boxed rails on an A body are a big deal. Oldsmobile fully boxed the frames on convertibles and the 442, and a fully boxed frame under a Cutlass S hardtop would have been a story.

With the frame out in the open, here is the truth. She is boxed from the front bumper mounts back to the firewall, open C channel through the middle, then boxed again from under the rear seat to just behind the rear suspension. That is not the 442 frame. That is exactly how Fisher built every standard A body hardtop frame: box the ends where the loads live, front torque boxes and rear kickups, and run open channel between them where a roof structure carries its share.

So no barn find headline this time. What we have instead is an honest, straight, unmolested factory frame, and I will take that trade. A mystery frame swap raises questions. A factory original frame answers them.

It does put one item back on the build list. When the plan briefly believed in full boxing, the chassis stiffening work looked like a factory freebie. It is not. Those open center rails flex, and with modern power and modern rubber going into this car, the middle of the frame gets stiffened the traditional way: weld in boxing plates along the open C channel sections, turning the factory partial box into a full one. That work happens after blast, when the rails are bare, clean, and honest, and before powder coat seals everything up.

The boxed sections she does have still keep their secrets, though. Closed rails rust from the inside out, and the rear kickups are the known trap on these cars. When this frame goes to bare metal, every boxed section gets probed hard and scoped from the inside, and internal frame coating goes into every cavity before any finish goes on the outside.

Two cars, two rooms

This is the moment a divided shop earns its keep.

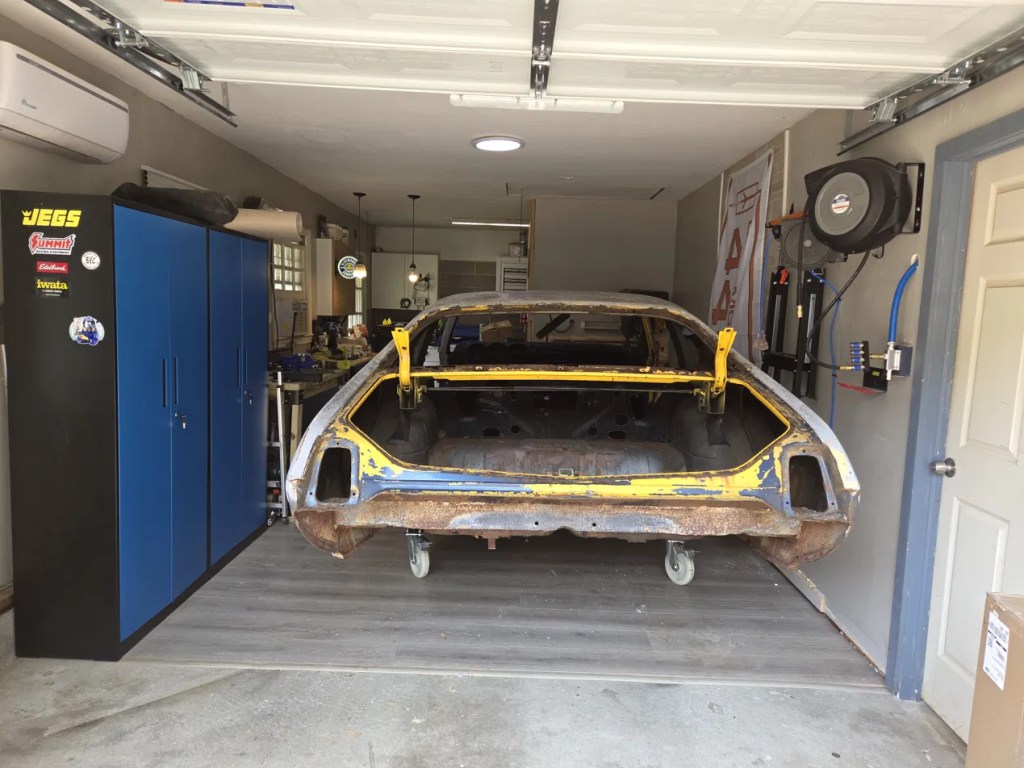

The shell rolled onto its dollies and into the clean side, the climate controlled bay where the metal work and paint prep happen. Look at her sitting in there under the 442 banner. Fifty seven years of weather, and from here on out she lives indoors in conditioned air until she leaves wearing Viper Blue. Bare and blasted metal flash rusts in Maryland humidity in hours. In that room, the clock runs slower, and every hour it buys us is an hour of better work.

The frame went to the other side, the dirty bay, where its teardown will happen. It is sitting there now with everything still hanging on it, front suspension, steering, the 12 bolt, that tired old exhaust, waiting its turn. Every one of those parts comes off in the sessions ahead until there is nothing on that frame but the frame.

Shell in the clean room, frame in the tear down room, and nothing in the driveway but memories. That is the workflow this shop was built around, and today it clicked into place.

What happens next

The shell and the frame are separate projects now, and that is the whole point of a frame off restoration. The shell heads for rust repair and the blast booth. The frame finishes shedding its hardware, then the dry fit work begins: mock the new suspension, drill for the rear coilovers, and get her ready for blast and powder.

Two cars worth of work ahead. One car worth of glory at the end.

If you have ever found something under the crud that changed your plan for the better, tell me about it in the comments. This hobby pays its dividends in surprises.

Let’s build it.
